| Model | LR-MD30S/1900 Height-adjustable type | LR-MD40S/1900 Height-adjustable type | LR-MD30/1900 Fixed type | LR-MD40/1900 Fixed type |
| Robot payload | 30kg | 40kg | 30kg | 40kg |
| Working radius | 1900mm | 1900mm | 1900mm | 1900mm |
| Horizontal distance | Horizontal coverage radius:1900 | |||
| Maximum allowable pallet load | ||||
| Application Size:1200*1200mm | ||||
| Optional configurations available up to 1500*1500mm | ||||
| Vertical distance | H2=2400mm | H1=2100mm | ||
| Palletizing speed | <10pcs/min | <6pcs/min | <12pcs/min | <9pcs/min |
| Repeat positioning accuracy | 士0.04mm | |||
| Communication method | TCP/IP | |||
| IP Rating | lp54 | |||
| Temperature range | 0-55℃ | |||
| Rated power | 3.6kw | |||
| Power Requirements | AC220V±10% 50Hz | |||
| Machine weight | =520kg | =560kg | =410kg | =460kg |
| Footprint area | 1505*1716mm | |||
| Equipment height | 3.5m | 3.5m | 3.2m | 3.5m |
Products
Automatic Robotic Palletizer
PRODUCTS
CONTACT US
Automatic Robotic Palletizer
- Phone : +86 18254352505
- Email : nancy@longreatautomation.com
- Wechat : +86 18254352505
- Whatsapp : +86 18254352505
Product Description
Product Show

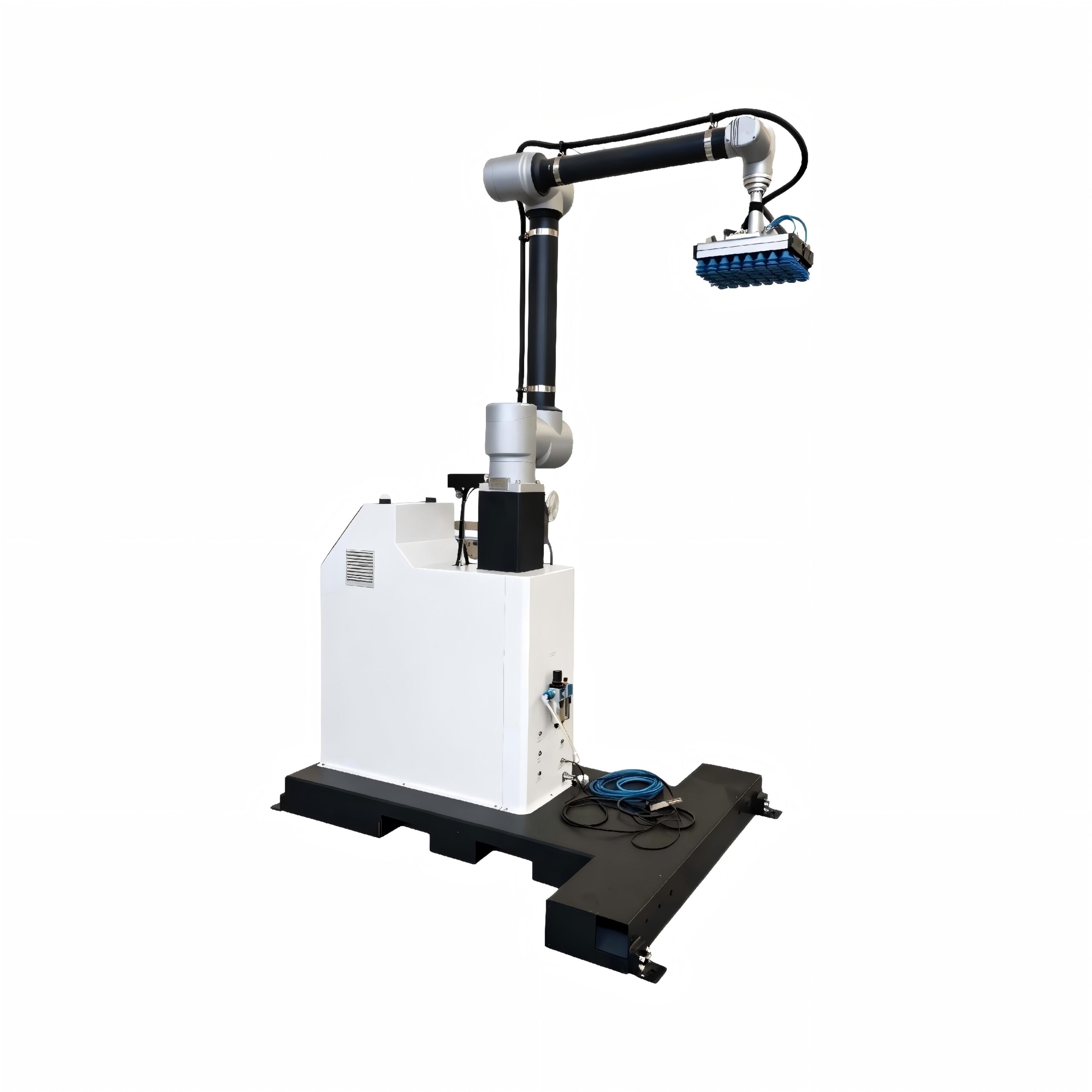

Automated Robotic Palletizing Solution
Longreat provides customized robotic palletizing solutions integrating industrial robots, intelligent gripping systems, and conveyor systems.
Designed for different packaging formats and production requirements, our palletizing systems help improve efficiency, reduce manual labor, and achieve stable automatic production.
Key Features
Customized Gripping System
Different grippers are designed according to product shapes, packaging types, and handling requirements.

Suitable for cartons, bags, crates, trays, and other packaging formats.
High Automation Efficiency
Continuous automatic operation reduces manual handling and improves productivity.

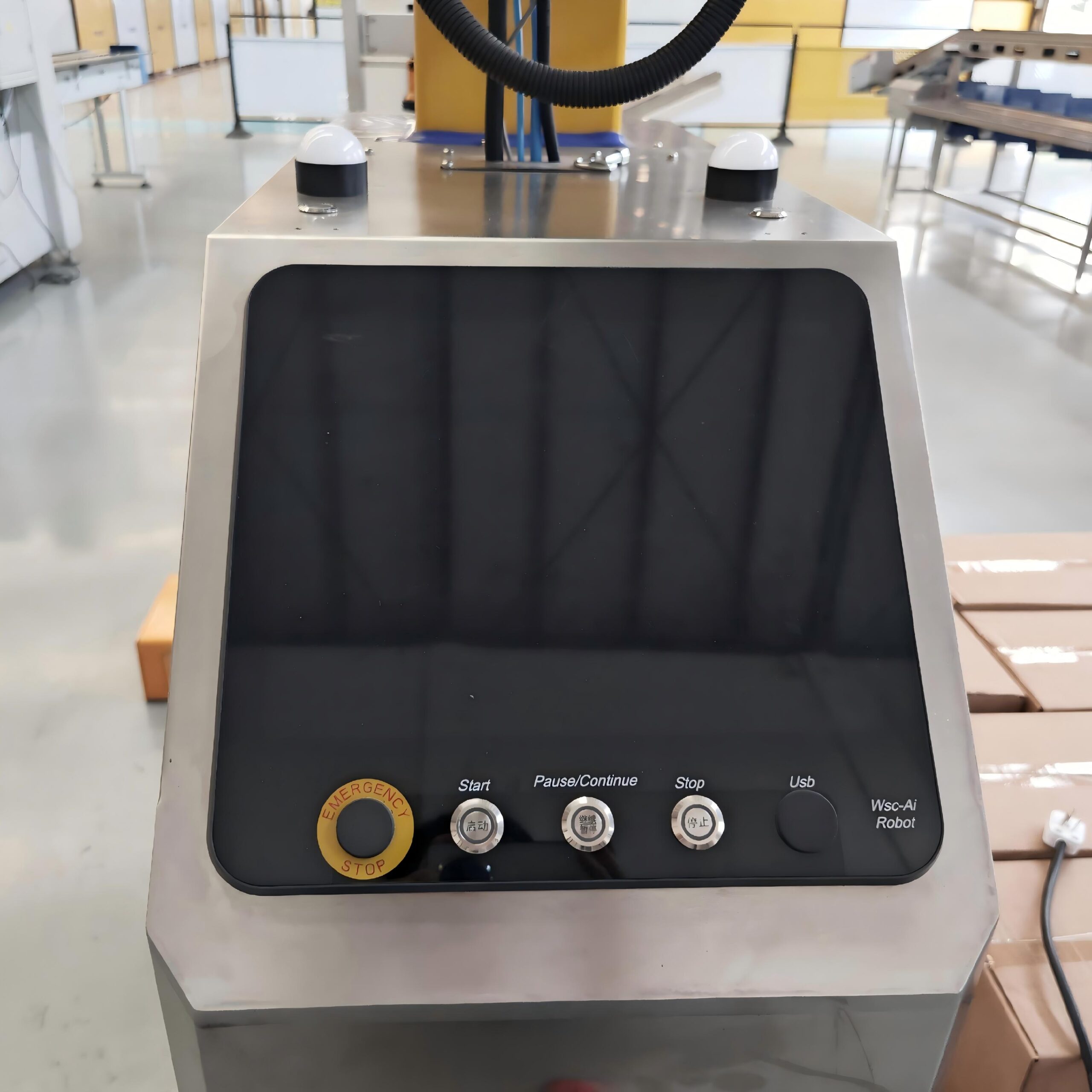

Intelligent Robot Control
Precise positioning and stable operation ensure reliable palletizing performance.
Easy Production Line Integration
Can be integrated with conveyors, packing machines, and other automation equipment.
Space-Saving Design
Optimized layout design according to factory space and production requirements.

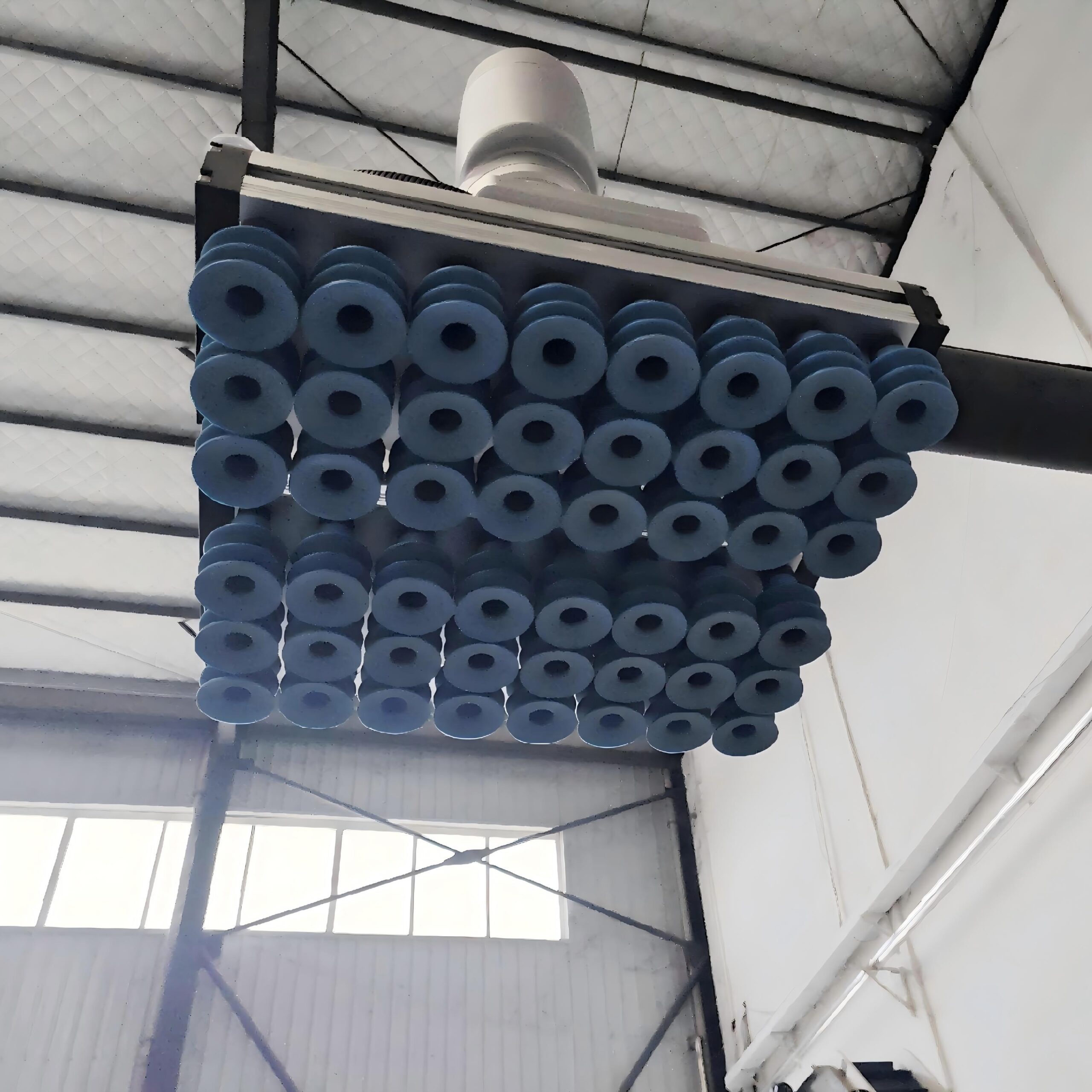

Gripping Solutions
Customized Robotic Gripping Solutions

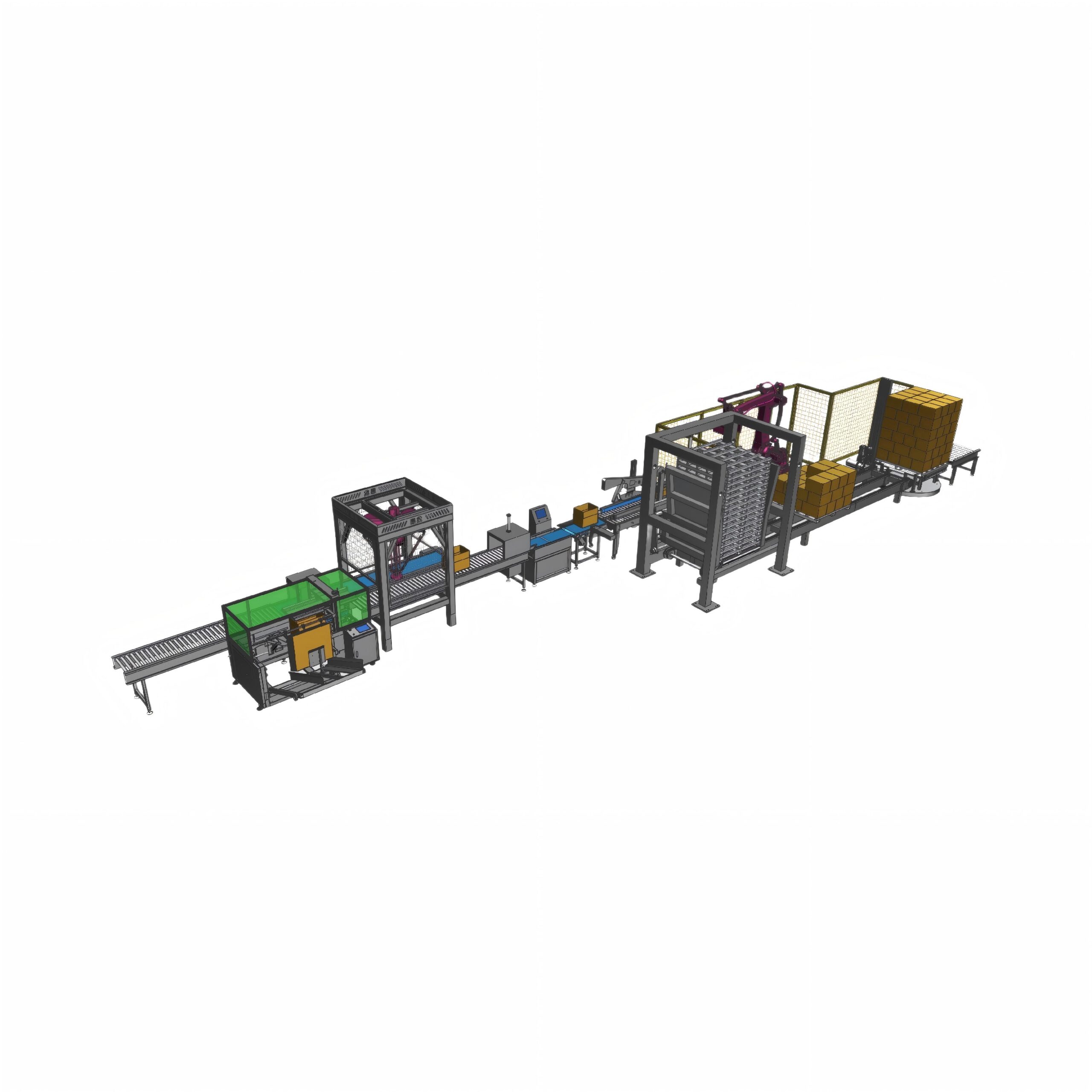

Automatic Packing & Palletizing Line
Longreat provides complete automation solutions from product handling, packing, conveying to robotic palletizing.
Integrated production lines help customers achieve efficient and intelligent manufacturing.

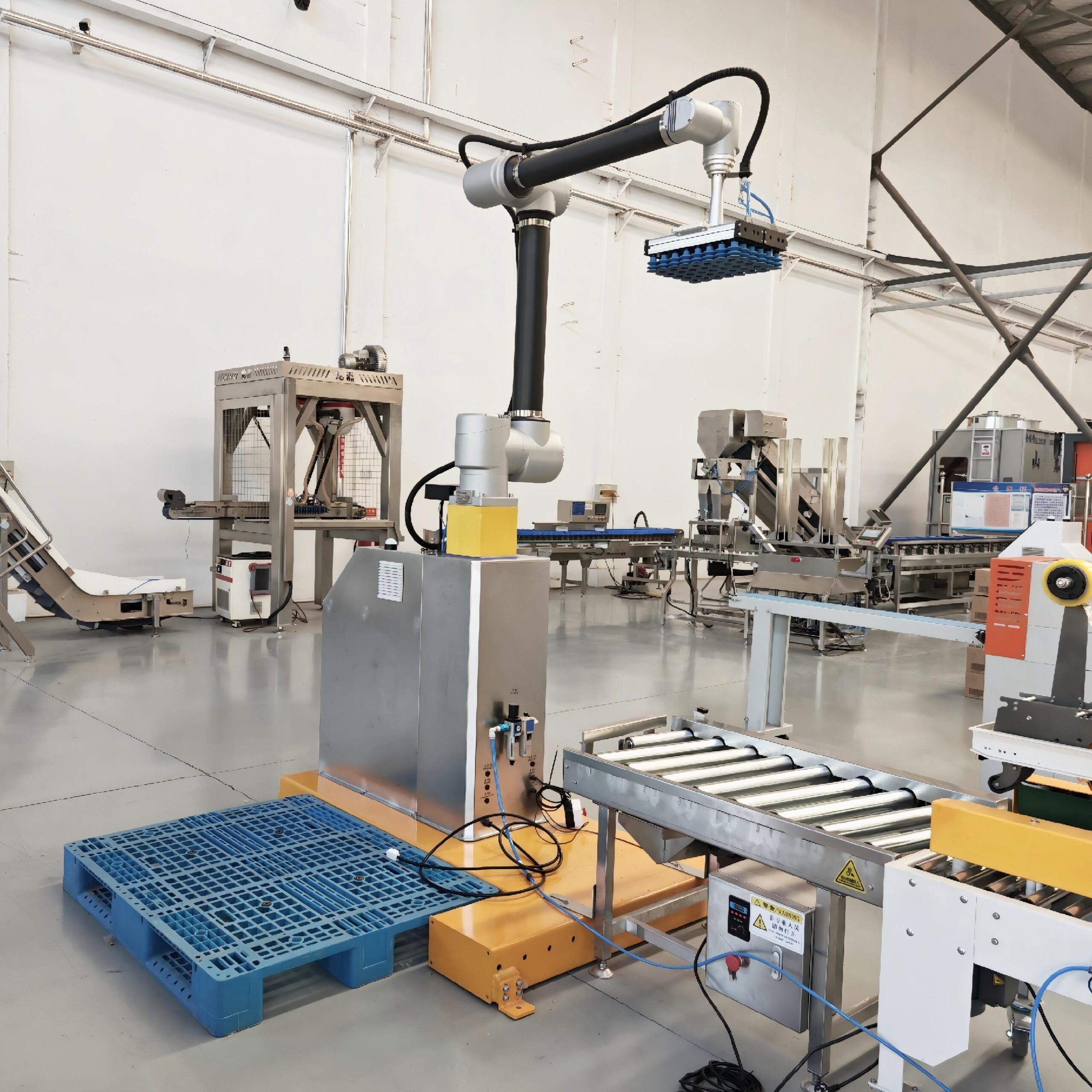

Customer Projects
With extensive experience in food processing automation, Longreat provides customized robotic palletizing solutions for different production environments.

FAQ
1. What is a robotic palletizing system?
A robotic palletizing system is an automated solution that uses robots, customized grippers and conveyor systems to automatically stack products onto pallets. It helps improve production efficiency, reduce labor costs and achieve stable palletizing performance.
2. What products can a palletizing robot handle?
Longreat robotic palletizing systems can handle various products, including cartons, bags, food packages, trays and other packaged products. Customized gripping solutions are designed according to different product shapes, weights and production requirements.
3. Can the palletizing system be customized for my production line?
Yes. Longreat provides customized robotic palletizing solutions based on your product features, production capacity, factory layout and automation requirements.
4. What are the advantages of using a robotic palletizer?
A robotic palletizer helps reduce manual labor, improve stacking accuracy, increase production efficiency and provide reliable operation for continuous production.
5. Can one robot palletizer handle different products?
Yes. The system can be programmed with different palletizing patterns and product handling settings, allowing flexible production changes.
6. Is the robotic palletizing system suitable for food processing factories?
Yes. Longreat robotic palletizing systems are widely used in food processing, packaging and manufacturing industries, providing efficient and reliable end-of-line automation solutions.
7. How do I choose the right palletizing solution?
The best solution depends on your product size, weight, production speed and factory layout. Send us your requirements, and our engineers will recommend a suitable palletizing solution.
8. Does Longreat provide installation support?
Yes. Longreat provides complete project support, including solution design, equipment manufacturing, installation guidance and commissioning assistance.
Contact Us
Looking for an automated palletizing solution for your factory?
Please Send us your product information and production requirements.
Our engineers will provide a customized robotic palletizing solution to improve efficiency and reduce labor costs.
Contact Longreat today for your customized automation solution.
